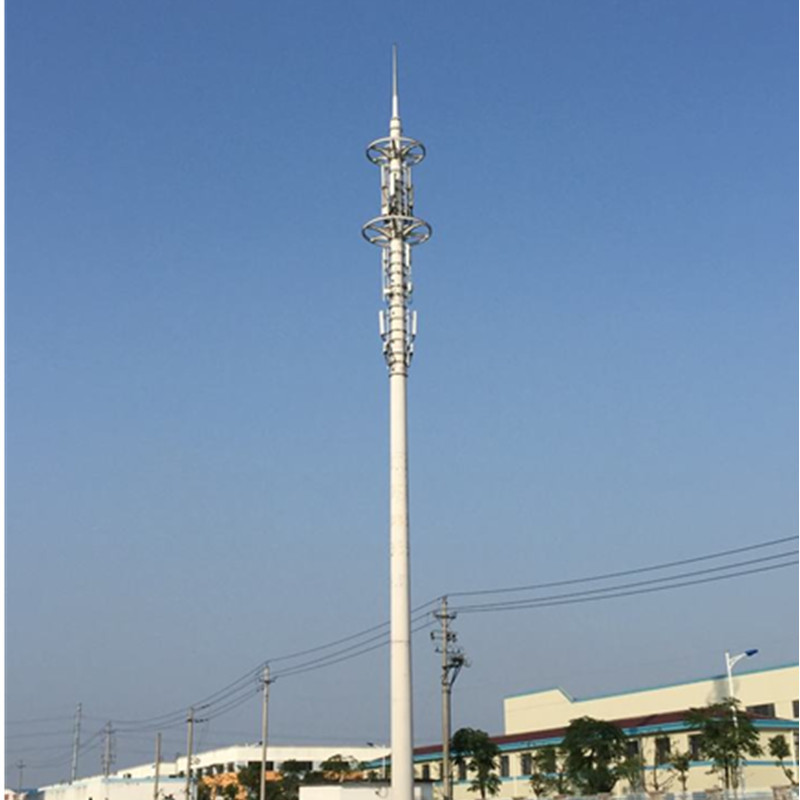

35m High Mast Mobile Tower Galvanized Steel Q355 Radio Microwave

  • 35m High Mast Mobile Tower Galvanized Steel Q355 Radio Microwave
  • 35m High Mast Mobile Tower Galvanized Steel Q355 Radio Microwave
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number GX-1543
Minimum Order Quantity 1 set
Price USD1880-19990 per set
Packaging Details plastic bubble sheets
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Tower Type 35m High Mast Cell Tower Galvanized Steel Radio Microwave Surface Treatment Hot-dip Galvanization
Certification ISO9001:2008 SGS COC Allowable Deflection 0.5 ~1.0 Degree @ Operational Speed
Welding Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) Galvanization Standard ASTM A123/ ISO 1461
Grade Of Bolts And Nuts Grade 4.8, 6.8, 8.8 Transportation By Sea To Clients Destination Port
Steel Structure Monopole Tower/Hight Mast Pole The Lead Time 20-30days
Highlight

35m High Mast Mobile Tower

,

Galvanized Steel High Mast Mobile Tower

,

Q355 Radio Microwave Steel Tubular Pole
Leave a Message
Product Description

35m High Mast Cell Tower Galvanized Steel Radio Microwave





 Specification of Hight Mast Tower:



Material Angle steel plates, flat steel plate, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.



Communication tower technical indicators:



a) Communication steel Lattice tower height: refers to the vertical distance from the base of the tower foot to the installation location of the lightning rod;



b) Wind pressure requirement: Determine the wind pressure according to W0=V02/1600 by taking the average maximum wind speed V0 (m/s) of the 10-year once-in-tact 10-minute period of the local comparatively empty ground and flat surface with a height of 10m. kN/m2;



c) Full-load wind load: Calculate based on the number of antenna layers and the number of microwave antennas per layer, and the antenna diameter in a specific project;



d) Communication tower flexion angle: less than 1 degree;



e) Center tilt: The verticality of the tower shall not be greater than 1/1500 of the height of the steel Lattice tower ;



f) Seismic strength: ≥8°;



g) The period of preservation: not less than 30 years in the local environment;



h) Galvanizing requirements: General thickness greater than 86 microns, uniform thickness, smooth surface. The specific situation is determined according to the specific project;



i) Material: Q345 Q235



j) Source of steel: Baosteel / Shougang / Handan Iron and Steel
