15m 60m High Mast Steel Tubular Tower Hot Dip Galvanized Powder Coating

  • 15m 60m High Mast Steel Tubular Tower Hot Dip Galvanized Powder Coating
  • 15m 60m High Mast Steel Tubular Tower Hot Dip Galvanized Powder Coating
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number STP-031
Minimum Order Quantity 1 set
Price USD498-8898 per piece
Packaging Details plastic bubble sheets and pearl wool sheets
Delivery Time 20-30days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 1000 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Steel Tubular Tower Material Structural Carbon Steel
Surface Finish Hot Dip Galvanization Height 15m To 60m Or Other Customized Height
Wind Speed 35-50m/s Lifetime 20-50 Years
Warranty 3 Years Delivery Time 20-30 Days
High Light

15m Steel Tubular Tower

,

15m 60m Steel Tubular Tower

,

15m 60m tubular steel tower
Leave a Message
Product Description

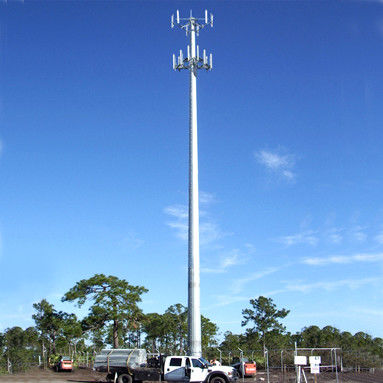

15m 60m High Mast Steel Tubular Tower Hot Dip Galvanized Powder Coating



Hot Dip Galvanized steel Pole GSM//CDMA/Radio/5G Mobile Communication Tower with 1-5 Platforms and Antenna Brackets





Customized to customer's designs, speficications, requirements and drawings.

As a professional manufacturer of steel poles and towers, we’re producing all kinds of steel poles for a vast range of applications such as communication macrocell and microcell stations, street/roadway/ highway lighting and traffic signal control and monitor, landscaping etc. In addition, we can also create new designs of steel poles, towers and gantry structures to meet your aesthetic and functional demands.



The popular steel communication poles include conical or tapered pole, hexagonal or polygonal steel pole, straight round steel pole and octagonal pole. There are 2 ways of installation of the steel poles, one is directly buried and the other way is fixed to steel frame foundation with anchor bolts by base plate with bolts and nuts.


Specifications

Descriptions Steel poles and towers for mounting communication antennas, microwaves, RRUs etc.
HS Code 7308900000
Material Weldable structural carbon steel
Grade GB Q235, Q345, BS4360, ASTM A36 etc.
Yield Strength 235-355MPa
Height 5m to 55m or other specified height
Thickness 4mm to 20mm, depending on height of pole.
Pole Shape Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc.
Diameter or Dimensions Subject to height of pole and required mechanical properties.
Design Single, dual or multiple platforms and brackets
Surface Finish Hot dip galvanization plus powder or PVDF coating (optional)
Galvanization 65-100 Microns
Coating 35-80 Microns (optional)
Color Silver, grey, black, white, blue, yellow etc.
Applications GSM, radio, 3G/4G/5G microcell, macrocell and other communication purposes or power transmission and distribution.



The steel high mast poles are designed with platforms or brackets for mounting antennas or other facilities as per requests. The designs of platforms and brackets are also customized to requirements for different connectors of antennas or other facilities. With custom special designs, the steel towers or poles are used for not only telecommunication or power transmission or distribution but also for landscape decorations.



Applicable Examples of Steel Tower and Pole



Tubular and Angular Steel Communication/power transimission or distribution Tower



15m 60m High Mast Steel Tubular Tower Hot Dip Galvanized Powder Coating 0

Roadway/highway/stadium/Street light pole



15m 60m High Mast Steel Tubular Tower Hot Dip Galvanized Powder Coating 1

Traffic signal light pole,Traffic CCTV monitor camera and sign gantry



15m 60m High Mast Steel Tubular Tower Hot Dip Galvanized Powder Coating 2

Smart City Management System Light Pole



15m 60m High Mast Steel Tubular Tower Hot Dip Galvanized Powder Coating 3

Signage/Advertising Billboard or LED display pole or gantry



15m 60m High Mast Steel Tubular Tower Hot Dip Galvanized Powder Coating 4

High Mast Landscape/Lighting/Communication Steel Tower



15m 60m High Mast Steel Tubular Tower Hot Dip Galvanized Powder Coating 5

Artificial Pine Tree Camouflaged  Communication Antenna Microcell & Macrocell Tower
