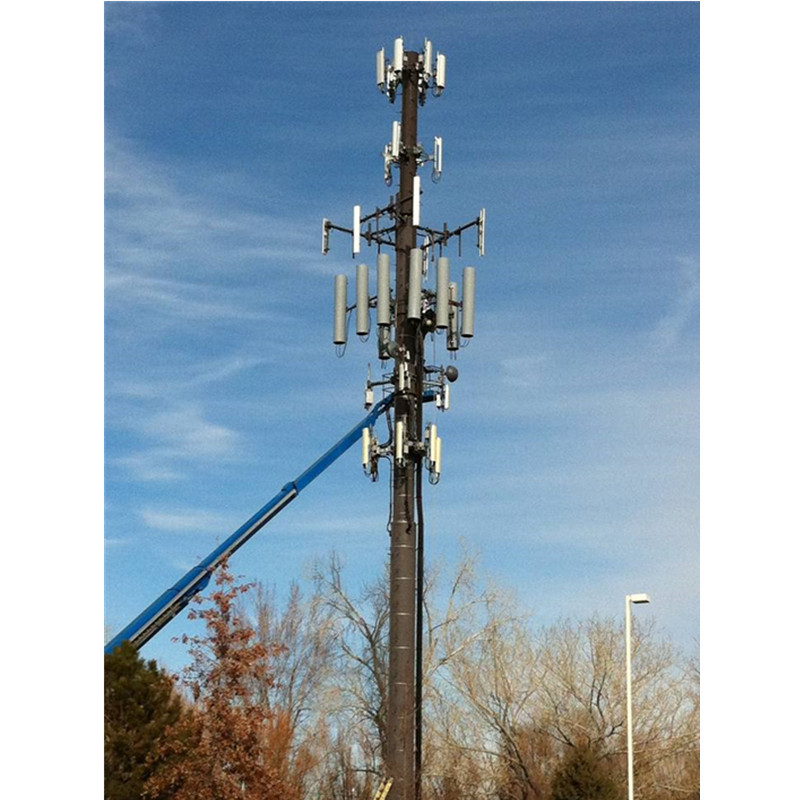

T Mobile 5G High Mast Tower 30-60M Galvanized Steel Radio Microwave

  • T Mobile 5G High Mast Tower 30-60M Galvanized Steel Radio Microwave
  • T Mobile 5G High Mast Tower 30-60M Galvanized Steel Radio Microwave
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number GX-1521
Minimum Order Quantity 1 set
Price USD1880-19990 per set
Packaging Details plastic bubble sheets
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Tower Type 5G Tmobile High Mast Tower 30-60M Galvanized Steel Radio Microwave Material Q235B Or Q345B
Surface Treatment Hot-dip Galvanization Certification ISO9001:2008 SGS COC
Steel Structure Monopole Tower Allowable Deflection 0.5 ~1.0 Degree @ Operational Speed
Welding Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) Galvanization Standard ASTM A123/ ISO 1461
Grade Of Bolts And Nuts Grade 4.8, 6.8, 8.8 Transportation By Sea To Clients Destination Port
Highlight

30m T Mobile 5g Cell Towers

,

Galvanized Steel T Mobile 5g Towers
Leave a Message
Product Description

5G Tmobile High Mast Tower 30-60M Galvanized Steel Radio Microwave





 Specification of Hight Mast Tower:



Material Angle steel plates, flat steel plate, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.

T Mobile 5G High Mast Tower 30-60M Galvanized Steel Radio Microwave 0



Guangxin Manufacturer 25m 35m Monopole Tower Price



Monopole Towers are used for a variety of communication applications and are ideal for use when zoning is difficult. They are the least intrusive and easiest communication towers to erect making them one of the most popular tower types in the wireless communication industry. Monopoles can also be designed as concealment poles: pine poles, flag poles, palm poles and other stealth towers. Many uses include cellular monopoles, wireless internet monopoles, homeland security monopoles, two-way monopoles, and wind tower monopoles.





Monopole Tower is a kind of tower that consists of one stem or one pole anchored to the ground. According to its cross-section, Monopole Tower is divided in to two types :

Cilcular-pole is a kind of monopole having a cross section/panel diameter similar from bottom to top.​Tapered-pole is a kind of monopole having a varied cross-section diameter size that when the used diameter is more up will be smaller.



Monopole: a monopole, as shown below, is a cylindrical, self supporting, aluminum or steel structure anywhere from 12 inches to 60 inches in diameter. The base of these poles is usually set in a concrete foundation some 20 feet deep and tapered from the base to the top which can be as high as 200 feet above the ground level. Triangular platforms like those shown below are attached to the pole to accommodate placement of the antennas. There are typically three rectangular panel type antennas attached to poles on each of the three sides of the platform, each serving a different sector of the service area . Monopoles are very strong and in Montgomery County, new monopoles are required to accommodate at lease three carriers’ antennas (to foster co-location on the monopole once erected). Monopoles can have as many as five sets of cellular antennas attached on them.
