Product Details
Name 10m Galvanised Street Light Pole Material Weldable Structural Carbon Steel
Grade Q235B, Q235B Or Specified Steel Available Height 3m To 45m
Shape Straight Round, Conical, Polygonal, Rectangular Etc. Wind Speed 50-260m/s
Surface Finish Hot Dip Galvanization And Powder Or PVDF Coating Color White, Or Specified Colors
Lifespan 20-50 Years Packing Plastic Bubble Sheets And Pearl Wool Sheets
High Light

10m Galvanised Street Light Pole

,

Multifunctional Galvanised Street Light Pole

,

10m galvanized street light pole
Leave a Message
Product Description

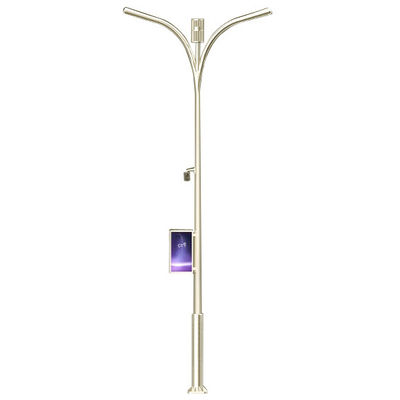

10m Multifunctional Galvanised Street Light Pole Types For LED Lamps



10m Good Quality Smart Steel Light Pole with Dual Arms for mounting LED lamps



Galvanized Steel Light Pole with Color Powder Coating for Traffic control and Street or roadway lighting

Color Powder or PVDF coated Street or roadway Light Pole with custom designs of main shaft and arms/mounting brackets and electrical cabinet

As a professional manufacturer of steel poles and towers, we’re producing all kinds of light poles for a vast range of applications such as street lighting poles, roadway and highway light poles, traffic signal, CCTV monitor and guideboard poles and gantries, signage poles and gantry frames, high mast lighting poles for public sqaures and stadiums etc. In addition, we can also create new designs of poles to meet your aesthetic and functional demands.



The popular steel light poles include tubular steel pole, solar street light pole, conical or tapered light pole, hexagonal or polygonal lighting pole, straight round street light pole and octagonal lighting pole. There are 2 ways of installation of the steel poles, one is directly buried and the other way is fixed to steel frame foundation with anchor bolts by base plate with bolts and nuts.


Specifications



Descriptions Steel poles for mounting lights, CCTV camera, guideboards, billboards etc.
HS Code 7308900000
Material Low carbon weldable structural steel
Grade GB Q235, Q345, BS4360, ASTM A36 etc.
Yield Strength 235-355MPa
Height 5m to 35m or other specified height
Thickness 4mm to 15mm, depending on height of pole.
Pole Shape Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc.
Diameter or Dimensions Subject to height of pole and required mechanical properties.
Design Single, dual or multiple straight or curved arms and brackets
Surface Finish Hot dip galvanization plus powder or PVDF coating (optional)
Galvanization 65-100 Microns
Coating 35-80 Microns
Color Silver, grey, black, white, blue, yellow etc.
Applications Roadways, streets, highways, stadiums, public sqaures, airports, railway stations, communities, parking lots, gardens etc.

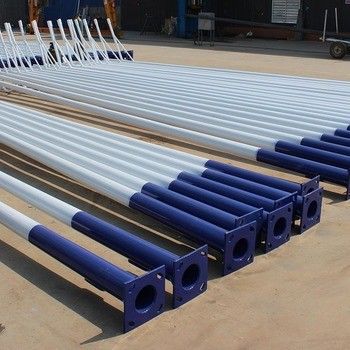

10m Multifunctional Galvanised Street Light Pole Types For LED Lamps 0 10m Multifunctional Galvanised Street Light Pole Types For LED Lamps 1

Conical roadway light pole Directly buried installation        Fixed by bolts and nuts with foundation



The steel light poles are designed with single, dual or multiple arms and brackets for mounting lamps, solar panels, CCTV cameras or other facilities as per requests. The designs of arms and brackets are also customized to requirements for different connectors of luminairs or other facilities. With custom special designs, the light poles are not only used for lighting, monitoring or traffic signal control but also for city landscape decorations.



Applicable Examples of Steel Poles



Street Lighting Pole



10m Multifunctional Galvanised Street Light Pole Types For LED Lamps 2

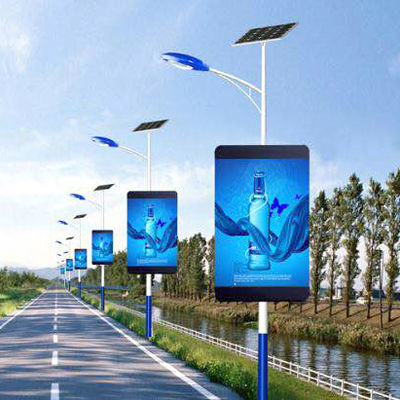

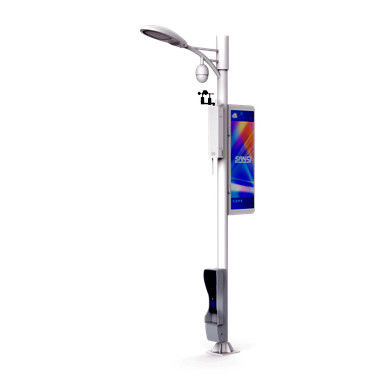

Smart City and Intelligent Traffic Signal and Lighting Pole Management System (all in 1 digital information solution)

High power LED lamp with light sensor control

Built-in loudspeaker and network system for APP online remote control

Weather and environment management system

Traffic signal control system

CCTV camera monitor system

LED screen for information and advertising display

Intercom alarm and alert communication system

High quality customized design steel light pole for support and mount.

Traffic signal light pole and CCTV monitor camera pole

Artificial Tree Camouflaged Telecommunication Antenna Tower made from galvanized steel pipes and fiber plastic.
