Q235 Solar Panel Support Structure 40FT Carport Steel Frame Structure
| Place of Origin | Guangzhou, China |
|---|---|
| Brand Name | Guangxin |
| Certification | ISO9001 |
| Model Number | GX-1019 |
| Minimum Order Quantity | 1 set |
| Price | USD1.6 per kg |
| Packaging Details | In Bundles and fasten with steel strips or by wooden pallets |
| Delivery Time | 20-25 days |
| Payment Terms | Western Union, L/C, T/T, MoneyGram |
| Supply Ability | 100 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Usage | Guangzhou Factory Carport Steel Frame Structure Q235 Material | PV Module | Framed |
|---|---|---|---|
| Tilt Angle | Up To 60° | Material | Aluminum AL6005-T5 |
| Snow Load | 1.5kn/sqm | Application | Solar System |
| Structure Height | (Front) >9.5' (3,000m) | Stucture Height | (Back) >8.2' (2,500mm) |
| Max Design Wind Speed | 105 Mph | Warranty | 10years |
| High Light | Q235 Solar Panel Support Structure,40FT Solar Panel Support Structure |
||
Product Description

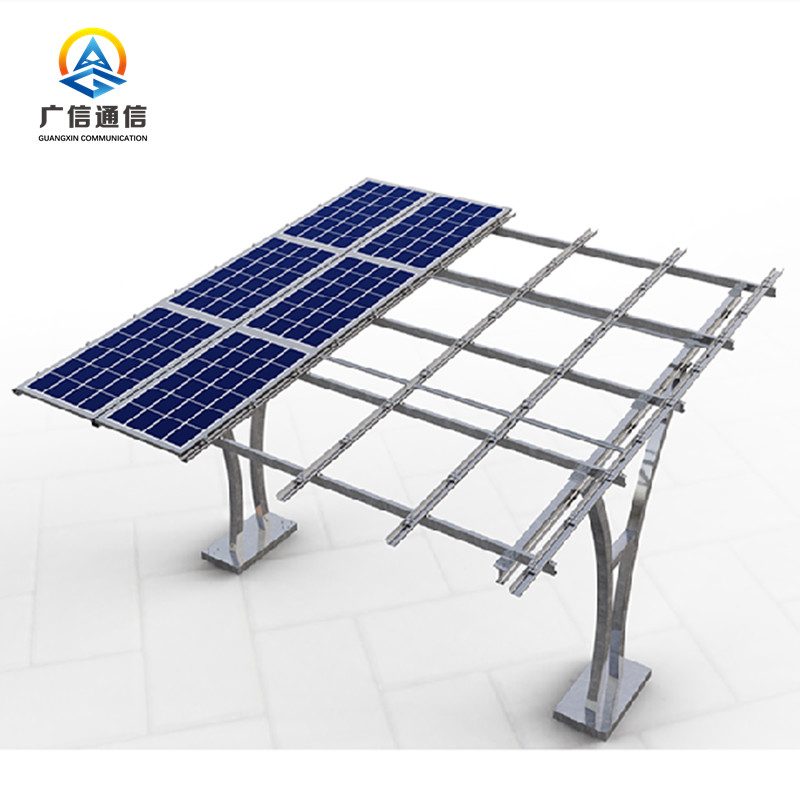

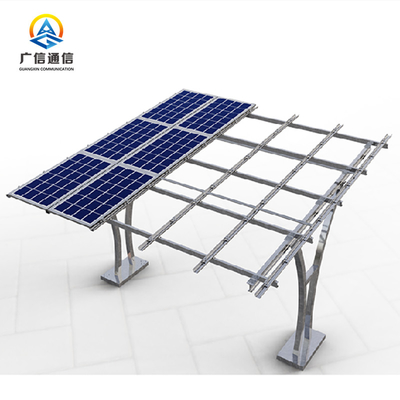

Guangzhou Factory Carport Steel Frame Structure Q235 Material
Specification of Carport Frame Structure:
| Material: | Aluminum 6063 / Steel Q235 |
| Product: | Custom metal parts as customers' ideas, drawings or samples |
| Manufacturing Equipment: | CNC, sawing, deburring, punching, tapping, chamfering machines |
| Surface Treatment: | HDG(hot dipped galvanized ),Pre-galvanized,Electrical-galvanizing(yellow or white),powder coating(Black,Green,White,Grey,Blue)etc. |
| Usage: | LED light industry, solar panel industry, sanitary ware industry, auto part industry, heat sink industry and etc. |
| Dimensions: | Customized |
| Lengths: | Either 20FT or 40FT or cut into the length according to clients' requirements |
| QC: | 100% Strict Inspection For Every Processing |
| Service: | One-stop Service:Custom Design, Fabrication, Assembly And Delivery |
| Thickness: | Above 0.7mm or customized |
Feature:
1. Ideal for shade and carport structures
2. Capable of 96" (8') or higher front ground clearance
3. Ample covered parking space for four vehicles
4. Seasonal tilt adjustments for optimal sun exposure
5. Securely install 32 solar panels on single row of ground-mounted vertical poles
6. Heavy gauge galvanized steel and aluminum construction
7. Mounts on standard Schedule 40 or 80 galvanized steel pipe
8. Designs available to withstand up to 130 MPH wind zones and heavier snow loads
9. MIG welded steel pipe caps
10. Stainless steel module mounting hardware
11. 6000 series structural aluminum mounting rails
12. Rail brackets with powder-coated finish
13. Reduce Net Cost with Federal renewable energy tax credit and rebates
14. Stainless steel rack assembly hardware
