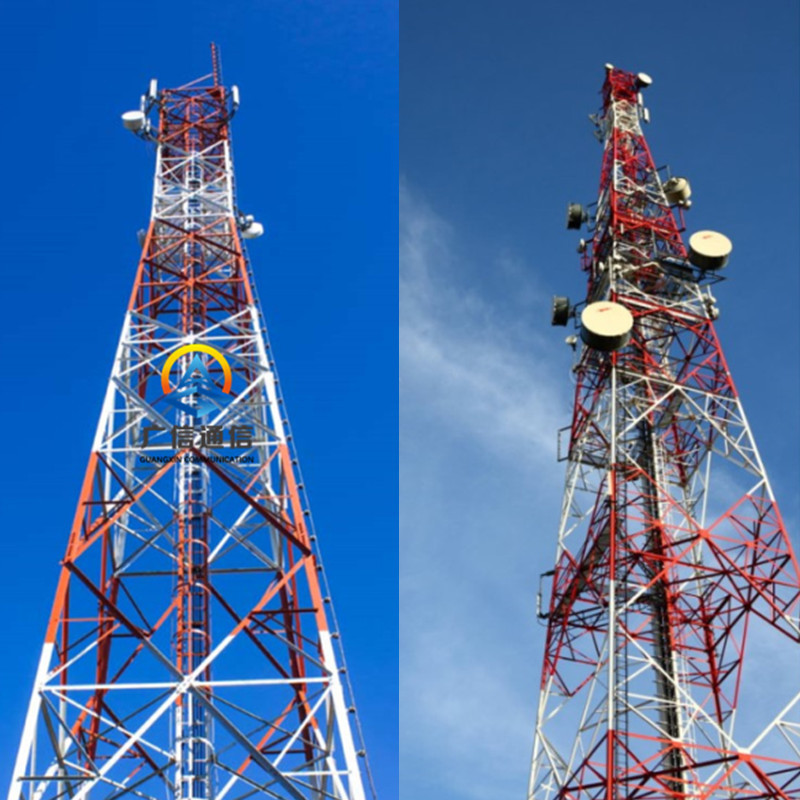

Microwave Antenna Telecommunication Cellular Tower For Radio TV Broadcasting Equipment
| Place of Origin | Guangzhou |
|---|---|
| Brand Name | Guangxin |
| Certification | ISO9001 |
| Model Number | GX-5670G |
| Minimum Order Quantity | 1set |
| Price | USD1880-2100 |
| Packaging Details | Cotton sheets or cloth package by bundle |
| Delivery Time | 20-30days |
| Payment Terms | Western Union, L/C, T/T |
| Supply Ability | 300ton/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Microwave Antenna Telecommunication Cellular Tower | Steel Structure | HDG Lattice Steel Tower |
|---|---|---|---|
| Material | EN10025: S355JR, S355J0,S355J2, GB/T1591 Q345B | Braces | Q235B=GB/T 700 |
| Design Wind Speed | 35/210kph | Galvanization Standard Of Steel Sections | ISO 1461 Or ASTM A123 |
| Design Loading | As Per Requirement And Specification By Clients Worldwide | Design Of Pole | Against Earthquake Of 8 Grade |
| Bolts And Nuts | Mainly ISO 898 Grade 6.8 And 8.8 Bolts | Allowable Deflection | 0.5 ~1.0 Degree @ Operational Speed |
| Highlight | Telecommunication Cellular Tower,Microwave Antenna Telecommunication Cellular Tower |
||
Product Description
Microwave Antenna Telecommunication Cellular Tower For Radio TV Broadcasting Equipment
Specification of Telecommunication Tower Accessories:
| Material | Tubular Steel, Angle steel plates, Flat steel plate |
| Steel Type | Weldable low carbon structural steel |
| Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength | Fy≥235MPa |
| Tensile Strength | Fu≥400MPa |
| Elongation | σ≥20% |
| Surface Finish | Hot dip galvanization |
| Galvanized layer | T≥65μm |
| Height | 20m to 100m, customized to requests |
| Design | 4 legs self-supporting or free standing lattice tower |
| Structure | 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices. |
| Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening | Bolts and nuts, connecting plates |
| Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
| Wind Load | 0.35-1.0kN/sqm |
| Lifespan | 20-50 years |
| Warranty | 5 years |
| Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations. |
The feature of Cellular Tower:
1. Classification by structure: four-posted angle steel towers, three-column steel tube towers, single-tube towers (single tube towers), and pull-line towers.
2. According to the support methods: self-standing towers, pull-line towers;
3. The types of communication towers of our company: general communication towers, beautification communication towers, bionic tree communication towers, and landscape communication towers
4. Antenna Holder: 3 antenna mounts per base tower antenna mount.
5. Beacon lights: The position, quantity configuration and height standard of the company’s aviation obstruction lights must comply with the requirements of the relevant department of the Ministry of National Defense or the Civil Aviation Bureau of the specific project. Normally, 45 meters and below: One buoy light; 50 meters to 90 meters: 3 buoy lights; 100 meters: 5 buoy lights.
6. Outdoor cabling racks: The cable towers shall be erected on the side of the machine room with a width of 40 cm. Each base tower is equipped with 2 cabling racks, each paying 3 meters (each lane rack contains a cabling rack support).
