3 Meters Solar Panel Support Structure Ground Set Screw Bracket Waterproof Solar Mounting System

  • 3 Meters Solar Panel Support Structure Ground Set Screw Bracket Waterproof Solar Mounting System
Place of Origin Guangzhou, China
Brand Name Guangxin
Certification ISO9001
Model Number GX-1027
Minimum Order Quantity 1 set
Price USD11 per kg
Packaging Details In Bundles and fasten with steel strips or by wooden pallets
Delivery Time 20-25 days
Payment Terms Western Union, L/C, T/T, MoneyGram
Supply Ability 100 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Ground Set Screw Bracket Waterproof Solar Mounting System Solar Structure Material Galvanized Steel Q235B Or Aluminum Alloy
Feature Compressive Strength PV Module Framed
Snow Load 1.5kn/sqm Application Solar Panel System
Tilt Angle Up To 60° Warranty 10years
Usage Canopy Steel Structure For Carport Ground Clear Height 2-3meters
Module Orientation Portrait Or Landscape Wind Load 216 KM/H =60 M/S
Highlight

3 Meters Solar Panel Support Structure

,

Waterproof Solar Panel Support Structure
Leave a Message
Product Description

Ground Set Screw Bracket Waterproof Solar Mounting System Solar Structure







Specification of Solar Steel Structure:


Material: Aluminum 6063 / Steel Q235
Product: Custom metal parts as customers' ideas, drawings or samples
Manufacturing Equipment: CNC, sawing, deburring, punching, tapping, chamfering machines
Surface Treatment: HDG(hot dipped galvanized ),Pre-galvanized,Electrical-galvanizing(yellow or white), Anodized
Usage: LED light industry, solar panel industry, sanitary ware industry, auto part industry, heat sink industry and etc.
Dimensions: Customized
Lengths: Either 20FT or 40FT or cut into the length according to clients' requirements
QC: 100% Strict Inspection For Every Processing
Service: One-stop Service:Custom Design, Fabrication, Assembly And Delivery
Thickness: Above 0.7mm or customized









3 Meters Solar Panel Support Structure Ground Set Screw Bracket Waterproof Solar Mounting System 0



Product Description

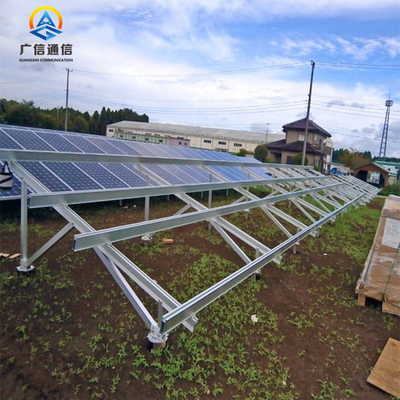

1.Solar Panel Ground Set Auger Screw Bracket Waterproof Solar Mounting system solar structure



The Solar Mounting structure is used to fix the solar PV panels and provide support and inclination to the system.
Our ground solar mounting system can be used in desert, glass lands, gobi, ceramic, macadam, shallow sea beach(less than 5m), and other geological environments, the install quality doesn't affect by groundwater.
Depends on the field conditions we come up different foundation design, use the suitable racking post to provide high strength and withstand wind and snow loads and save the labor cost.



2.Benefits:

2.1 The Tianfon mounting system compatible with most of the major framed and frameless PV modules on the market.

2.2 Products were designed by the experienced designers which have the systematic design, stable structure, mature technology, can reduce the difficulty of the installation on the most conditions.

2.3 The pre-assembled design of the highest level in factory simplifies construction site work to the largest degree and therefore installation is simple and quick. It can effectively improve construction efficiency, shorten construction period and reduce construction costs.

2.4 Reduced installatin times due to high pre-fabrication leve; MInimized assembly time and effort (up to 40%).

2.5 The racking systems can withstand extreme weather condition. The main supporting components have also been tested to ensure their structure and bearing capacity.

2.6 The mounting system suitable for various kinds of project, including residential project, commercial project, utility project and so on.
