Galvanized Tubular Telecom Steel Tower With Radio Antennas Transmission

  • Galvanized Tubular Telecom Steel Tower With Radio Antennas Transmission
Place of Origin Guangzhou
Brand Name Guangxin
Certification ISO9001
Model Number GX-5606G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Galvanized Tubular Steel Telecom Towers With Radio Antennas Transmission Surface Treatment Hot-dip Galvanized
Height 20-100M Material Q235b Or Q345b
Design Wind Speed Up To 280 Km/h Certification ISO9001:2008 SGS COC
Tower Type Tubular Towers, Monopole Tower, Angular Towers Design Loading As Per Requirement And Specification By Clients Worldwide.
Design Of Pole Against Earthquake Of 8 Grade Application Highway, Freeway, Airport ,seaport,plaza,stadium ,square,highway,street Way Etc
Highlight

Galvanized Tubular Telecom Steel Tower

,

Telecom Steel Tower Radio Antennas Transmission

,

Q235b Telecom Steel Tower
Leave a Message
Product Description

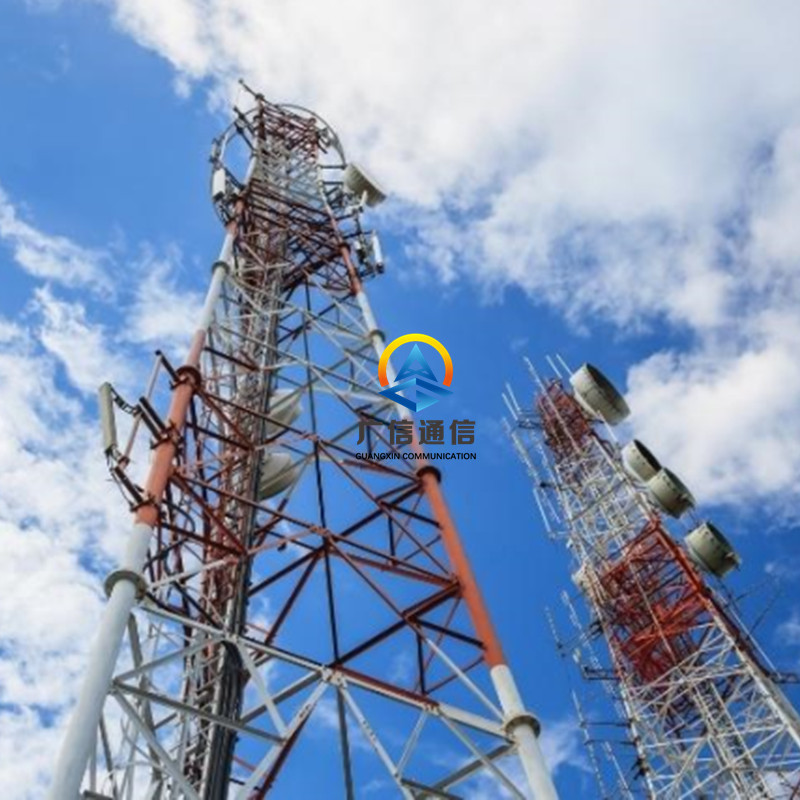

Galvanized Tubular Steel Telecom Towers with Radio Antennas Transmission





Galvanized Tubular Telecom Steel Tower With Radio Antennas Transmission 0



Specification:



Material Tubular Steel, Angle steel plates, flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.




Self-support Galvanized Tubular Steel Signal Transmission Tower Made of Steel Tubes and Plates
3 or 4 legs Self-supporting Galvanized Steel Lattice Communication Tower
Tubular Steel Lattice Telecommunication Tower with 3 legs, free standing fixed by steel frame concrete foundations
Steel Radio Tower, GSM and 4G/5G cellphone station tower, antenna tower, TV tower, radar tower, lighting tower and watching tower
High quality structural low carbon steel tower used for mounting telecom, radio and TV antennas
Professional factory of telecom towers, lighting towers and poles from Guangzhou, China


Tower Accessories
 Anti-Climbing Device
 Danger Plate
 Tower Phase Plate
 Tower Circuit Plate
 Tower Number Plate



Features:



1. Small coefficient of wind load, strong wind resistance.

2. Save land resource, convenient location.



3. Convenient transportation and installation.
