GSM Microwave VHF Radio Communication Tower Galvanized Steel

  • GSM Microwave VHF Radio Communication Tower Galvanized Steel
  • GSM Microwave VHF Radio Communication Tower Galvanized Steel
  • GSM Microwave VHF Radio Communication Tower Galvanized Steel
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number SST-051
Minimum Order Quantity 1 set
Price USD1998-19998 per set
Packaging Details plastic bubble sheets
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Delivery Time 20-30 Days Name Galvanized Angle Steel GSM Or 5G Telecom Tower
Material Weldable Structural Angle Steel Plates Or Pipes Surface Finish Hot Dip Galvanization
Height 30m To 120m Or Customized Height Material Grade GB Q235, Q345, Q355 Or Specified Grade
Yield Strength 235~355MPa Galvanized Thickness 65~85 Microns
Design 1-5 Platforms With Mounting Brackets Wind Load 0.36-1.0kN/sqm
Lifespan 20-50 Years Warranty 3 Years
High Light

VHF Radio Communication Tower

,

GSM Microwave Radio Communication Tower

,

Galvanized Steel Radio Communication Tower
Leave a Message
Product Description

Good quality GSM Microwave VHF Radio Communication Tower Galvanized Steel
4 Legs Self-Supporting Galvanized Angular Steel GSM Lattice Tower
4-legged Free Standing Galvanised Steel GSM or 5G Mobile AntennaTower

Professional supplier and factory of Self-support free standing Galvanized steel Lattice Communication Tower, mobile phone Antenna Tower, Radio Tower and TV tower, Power Transmission and Distribution Tower

With more than 10 years in producing Self-supporting steel towers which are the most popular suport systems for communication or power transmission and distribution applications, we've been exporting all kinds of steel towers and poles to dozens of countries. The steel tower is generally designed as 3 legs or 4 legs and fixed on steel framed concrete pedestal foundations, composed of galvanized tubular steel tubes or angular steel plates by welding and fastening with bolts and nuts. With height of 20m to 120m, the galvanized iron steel lattice towers are widely used for mounting mobile communication macrocell or microcell stations and power transmission or distribution wires or cables.

There are 3 popular types of lattice communication towers--ground fixed self-spoorting steel towers, rooftop self-supporting steel towers and steel wire guyed towers. The steel lattice towers are usually as high as 35m to 120m. Besides using for telecommunications, the steel towers are also widely used for power transmission and distribution as well as TV and radio signal transmission stations.

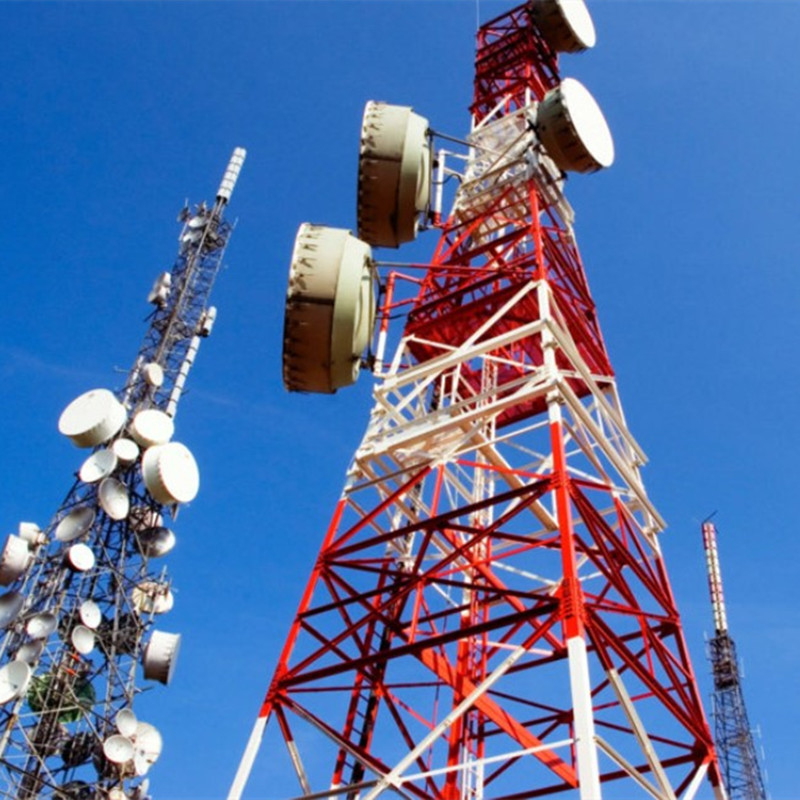

GSM Microwave VHF Radio Communication Tower Galvanized Steel 0
SST: Self-supporting Steel Tower


Specifications of 4 Legged Angular Steel Lattice Tower


Material Angle steel plates, flat steel plate, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization plus optionally painting
Galvanized layer T≥65μm
Height 20m to 120m, customized to requests and specifications or drawings
Design 4 legs self-supporting free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Concrete steel frame Foundations/pedestals, anchoring hold down bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G cellphone antennas, VHF/FM radio antennas, microwaves, telecom microcell or macrovell stations, TV stattions etc.

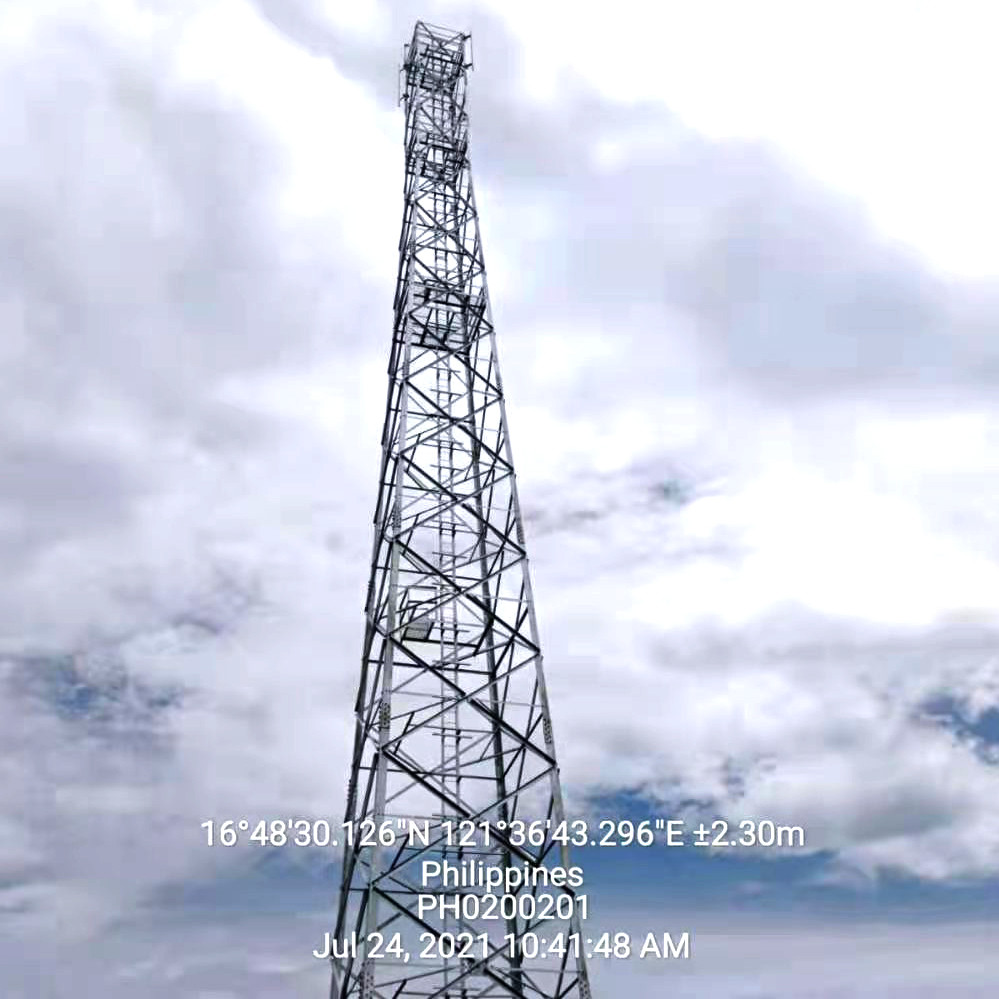

GSM Microwave VHF Radio Communication Tower Galvanized Steel 1
                                                                      Tower erection site

Manufacturing Procedures of Telecom Steel Towers
1, Design layout and drawing, set up specifications and sizes.
2, Buy row angle steel plates and flat steel plates as well as galvanized steel bolts, nuts, washers and springs.
3, Measure and cut out sizes and holes.
4, Weld necessary parts (for angle steel towers, the welded parts are footing plates, antenna mounts, lightning rod, ladder etc.)
5, Polish burrs and welding scars to make all members good surface.
6, Assemble tower sections according to drawings, make sure sizes and connecting parts are correct.
7, Pretreament: clean surface corrosion and oil with acid or other chemicals-->clean with water-->dip in cosolvents-->dry-->dip in hot zinc pool for galvanization-->cooling and curing-->clean-->dry
8, Check quality and start packing.


GSM Microwave VHF Radio Communication Tower Galvanized Steel 2
                                                 Galvanized angle steel tower foundations

FAQ

1, Where is your factory?
Our factory is located in Huadu District of Guangzhou City, about 35km away from Baiyun Airport.
2, What can you supply?
We're professional manufacturer of steel frames for civil infrastructures and frameworks, especially telecommunications towers, power grid towers, street light poles, portal gantry frames for traffic lights, guideboards, CCTV cameras, LED display screens, advertising billboards, factory plants etc. We can produce the steel works according to your designs and drawings.
3, How long can you deliver?
15-35 days after confirming shop drawings, depending on order quantity.
4, What's your advantages comparing with other suppliers?
We have been specializing in this field for more than 10 years since 2009, we have professional engineers and designers, skilled workers, advanced production line equipped with CNC and laser cutting machines, welding machines, shaping machines, test instruments etc., we can produce the poles and towers or other steel frameworks according to customers' designs, specifications, drawings, requirements. Our quality is very good but price is reasonable and competitive. We're also providing excellent in-sales and after-sales services. We always provide good quality products and services beyond customers' expectations.
5, Can I customize the towers, poles or frameworks?
Yes, we can fabricate the towers, poles, frameworks or other related products according to your drawings, specifications and
requirements.
6, What's your payment terms?
T/T or irrevocable documentary L/C is accepted for us. The general payment arrangement is 30% down payment before production and
full payment before shipping by T/T, or L/C issued before production.
7, Can you guarantee the quality?
Yes.
8, Where are you shipping?
We usually ship from any port of Guangzhou or Shenzhen, other ports in other cities are also available if required.
