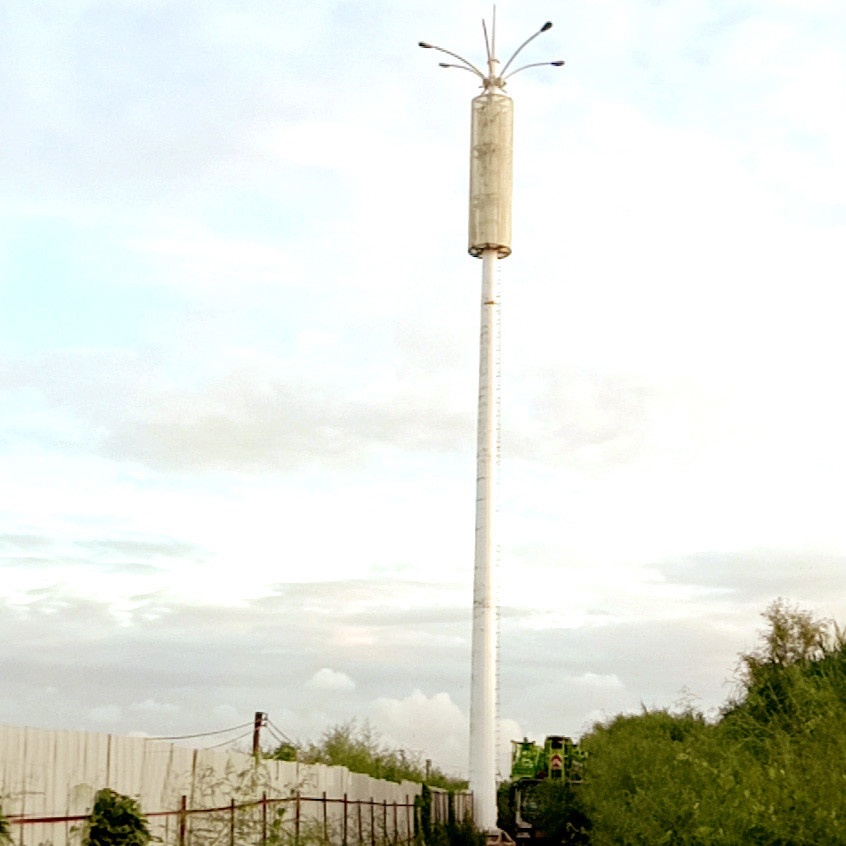

Q345 Steel Landscaping Lamp Pole Tower PVDF Coating High Mast Towers
| Place of Origin | Guangzhou, China |
|---|---|
| Brand Name | GUANGXIN |
| Certification | ISO9001 |
| Model Number | HLP-012 |
| Minimum Order Quantity | 10pcs |
| Price | USD198-2038 per piece |
| Packaging Details | Plastic Bubble sheets and pearl wool sheets |
| Delivery Time | 20-30 days |
| Payment Terms | T/T, L/C, Western Union, MoneyGram |
| Supply Ability | 5000pcs monthly |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Lamp Pole Tower | Material | Weldable Structural Carbon Steel |
|---|---|---|---|
| Grade | Q235B, Q345B Or Specified Steel | Available Height | 4.5m To 50m |
| Shape | Straight Round, Conical, Polygonal, Rectangular Etc. | Wind Speed | 50-260m/s |
| Surface Finish | Hot Dip Galvanization And Powder Or PVDF Coating | Color | White, Silver, Grey Or Specified Colors |
| Lifespan | 20-50 Years | Packing | Plastic Bubble Sheets And Pearl Wool Sheets |
| High Light | Q345 Lamp Pole Tower,PVDF Lamp Pole Tower,PVDF High Mast Towers |
||
Product Description
Q345 Steel Landscaping Lamp Pole Tower PVDF Coating High Mast Towers
Special Design Steel Landscaping Tower Telecom Tower And Light Pole
35m High Mast Galvanized Steel Light Pole or Tower with Communication 6 Antennas and 6 LED lamps for Large Field Lighting and 5G Signal Microcell Station as well as Landscaping
Multi-functional Hight Mast Steel Pole or Tower for large field lighting and communication Signal Station
30m High Mast Steel Light Tower or Pole with Automatic Lifting System and 10-16 high power Lamps / Lights
Galvanized Steel Light Pole with Powder or PVDF Coating for Landscaping and Lighting
Street Light Pole for mounting Solar Panels, LED lights, Antennas and Landscaping Ornament
4.5m to 50m High Steel street Light Pole, Arear Light Pole, Uttility Light Pole, Roadway Light Pole, Highway Light Pole, Stadium Light Pole etc.
All-in-1 Smart Light Pole for Mounting Street Lights, LED display screen, CCTV Cameras, Alarm Intercom, 3G/4G/5G/WIFI Antennas etc.
The popular steel light poles include tubular steel pole, solar street light pole, conical or tapered light pole, hexagonal or polygonal lighting pole, straight round street light pole and octagonal lighting pole. There are 2 ways of installation of the steel poles, one is directly buried and the other way is fixed to steel frame foundation with anchor bolts by base plate with bolts and nuts.
Specifications
| Descriptions | Galvanized Steel street / roadway / highway / stadium / Utility / area Light Pole |
| HS Code | 7308900000 |
| Material | Low carbon weldable structural steel |
| Grade | GB Q235, Q345, BS4360, ASTM A36 etc. |
| Yield Strength | 235-355MPa |
| Height | 5m to 35m or other specified height |
| Thickness | 4mm to 15mm, depending on height of pole. |
| Pole Shape | Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc. |
| Diameter or Dimensions | Subject to height of pole and required mechanical properties. |
| Design | Single, dual or multiple straight or curved arms and brackets |
| Surface Finish | Hot dip galvanization plus powder or PVDF coating (optional) |
| Galvanization | 65-100 Microns |
| Powder Coating | 35-80 Microns |
| Color | Silver, grey, black, white, blue, yellow etc. |
| Applications | Roadways, streets, highways, stadiums, public sqaures, airports, railway stations, communities, parking lots, gardens etc. |
Conical roadway light pole Directly buried installation Fixed by bolts and nuts with foundation
The steel light poles are designed with single, dual or multiple arms and brackets for mounting lamps, solar panels, CCTV cameras or other facilities as per requests. The designs of arms and brackets are also customized to requirements for different connectors of luminairs or other facilities. With custom special designs, the light poles are not only used for lighting, monitoring or traffic signal control but also for city landscape decorations.
Applicable Examples of Steel Poles
25m Street Lighting Pole with automatic lifting system
Smart City and Intelligent Traffic Signal and Lighting Pole Management System (all in 1 digital information solution)
High power LED lamp with light sensor control
Built-in loudspeaker and network system for APP online remote control
Weather and environment management system
Traffic signal control system
CCTV camera monitor system
LED screen for information and advertising display
Intercom alarm and alert communication system
High quality customized design steel light pole for support and mount.
Traffic signal light pole and CCTV monitor camera pole
Traffic guideboard pole and gantry
Signage/Advertising Billboard or LED display pole or gantry
Utility, roadway, highway, street light pole and landscaped Antenna Tower
Artificial Tree Camouflaged Communication Antenna Tower made from galvanized steel pipes and fiber plastic leaves.
