Advertising Billboard Galvanized Steel Structures 400MPa Strength
| Place of Origin | Guangzhou, China |
|---|---|
| Brand Name | GUANGXIN |
| Certification | ISO9001 |
| Model Number | GIS-010 |
| Minimum Order Quantity | 1 set |
| Price | USD2.18 per kilogram |
| Packaging Details | plastic sheets |
| Delivery Time | 20-25 days |
| Payment Terms | T/T, L/C, Western Union, MoneyGram |
| Supply Ability | 1000 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Galvanized Steel Advertising Gantry Frame And Structures | Material | Steel Channel Beams And Plates Or Pipes |
|---|---|---|---|
| Grade | Q235B, Q235B Or Specified Steel | Structure | Customized To Customer's Designs And Drawings |
| Dimensions | Customized To Customer's Specifications And Drawings | Surface Finish | Hot Dip Galvanized Or Painting |
| Fabrication | Prefabricated | ||
| High Light | 400MPa Galvanized Steel Structures,OEM Galvanized Steel Structures,400MPa galvanised structural steel |
||
Product Description
Advertising Billboard Galvanized Steel Structures 400MPa Strength
Galvanized Steel Outdoor Advertising Billboard Signage LED Display Gantry And Pole
Steel Signage, billboard and LED display Gantry Frame
Specifications
| Material | Tubular steel pipes, angular steel plates, flat steel plate or solid steel bars, bolts and nuts |
| Steel Type | Weldable low carbon structural steel |
| Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength | Fy≥235MPa |
| Tensile Strength | Fu≥400MPa |
| Elongation | σ≥20% |
| Surface Finish | Hot dip galvanization |
| Galvanized layer | T≥65μm |
| Height | 2m to 120m, customized to requests |
| Design | structural steel gantry frame |
| Structure | free standing structure |
| Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening | Bolts and nuts, connecting flanges |
| Configuration | Foundations, anchoring bolts, gantry sections, bolts and nuts |
| Wind Load | 0.35-1.0kN/sqm |
| Lifespan | 20-50 years |
| Warranty | 3 years |
| Applications | traffic signal control and monitor facilities, highway/roadway billboards,signs, LED display, traffic lights, CCTV cameras etc. |

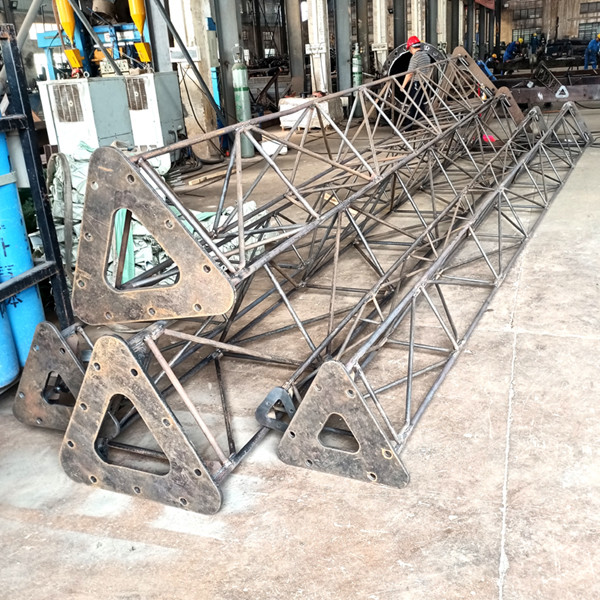

Galvanized steel Lattice Gantry for mounting highway traffic signs, signal lights, CCTV cameras and Display Screen

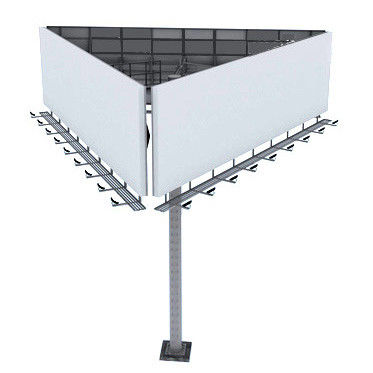

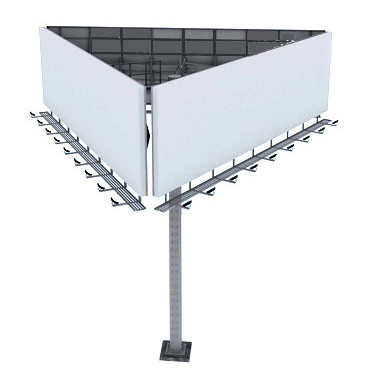

Traffic sign or guideboard pole Sign,billboard, LED display pole
All the steel structures are customized and prefabricated according to customer's designs, specifications and drawings.
Factory plant transmission rail steel structures
We're also producing steel frames for factory plants and building structures.
Galvanized Steel Highway Gantry Frames
Highway Traffic sign and CCTV Camera management gantry structure
