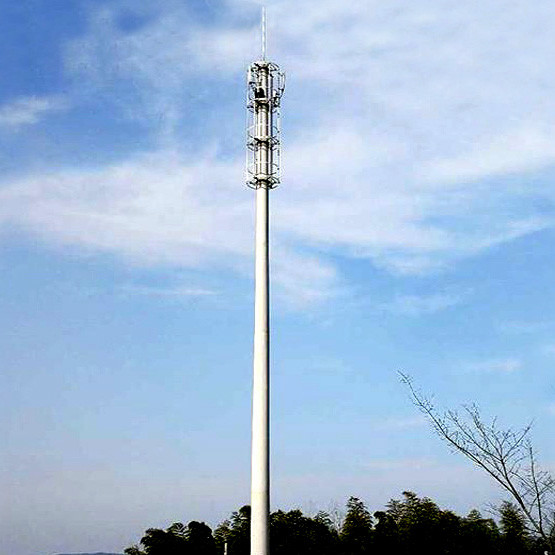

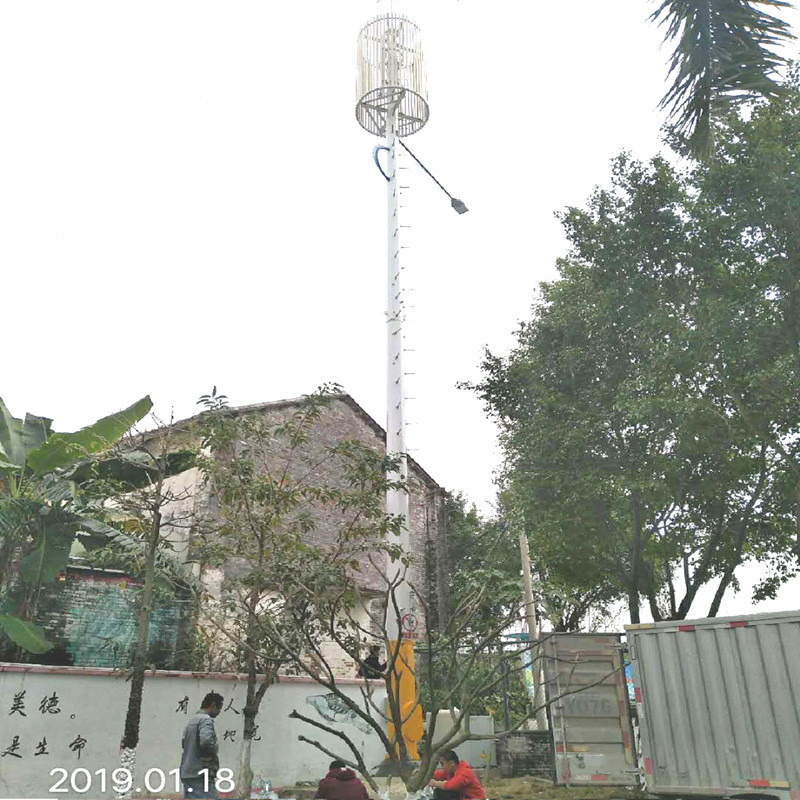

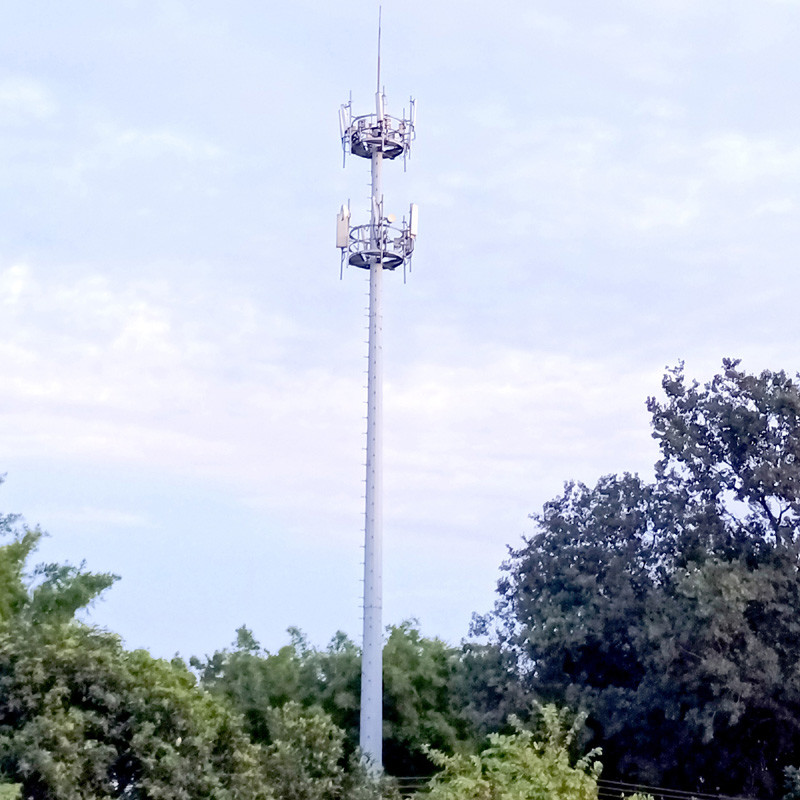

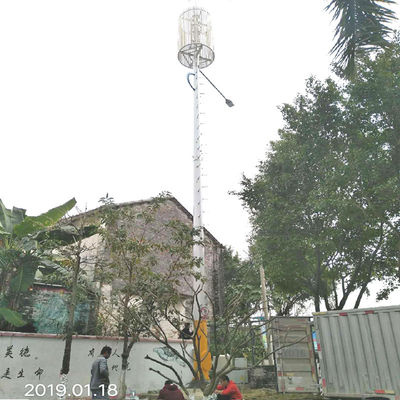

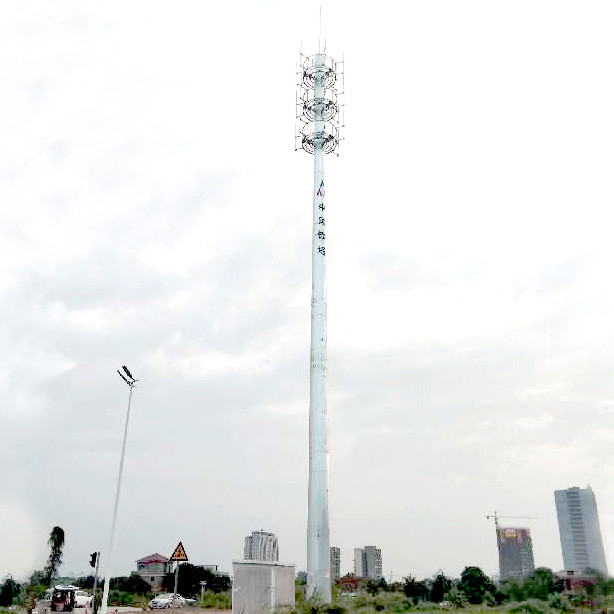

35m Tubular Telecom Steel Tower 2 Platforms For Mounting Telecom Antennas

  • 35m Tubular Telecom Steel Tower 2 Platforms For Mounting Telecom Antennas
  • 35m Tubular Telecom Steel Tower 2 Platforms For Mounting Telecom Antennas
  • 35m Tubular Telecom Steel Tower 2 Platforms For Mounting Telecom Antennas
  • 35m Tubular Telecom Steel Tower 2 Platforms For Mounting Telecom Antennas
  • 35m Tubular Telecom Steel Tower 2 Platforms For Mounting Telecom Antennas
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number MP-0026
Minimum Order Quantity 1 set
Price USD898-2038 per piece
Packaging Details plastic bubble sheets and pearl wool sheets
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Steel Communication Tower Material Galvanized Weldable Structural Carbon Steel
Height 25-65m Shape Conical Or Tapered Polygonal
Platforms 2-5 Platforms Mounting Brackets 3-6 Brackets Each Platform
Application FM Radio, 3G/4G/5G Antennas, Microwaves, RRUs Etc. Wind Load 0.35-0.85kN/sqm
Lifespan 20-50 Years Warranty 3 Years
Lead Time 20-30 Days
Highlight

35m Tubular Telecom Steel Tower

,

25m Telecom Steel Tower

,

35m steel communication tower
Leave a Message
Product Description

35m Tubular Telecom Steel Tower 2 Platforms For Mounting Telecom Antennas



35m Tubular Steel Tower With 2 Platforms For Mountning Telecom Antennas



Galvanized Steel Monopole Tower for Mounting Communication Antennas, RRUs, Microwaves etc.

25-65m High Mast Steel Pole for Telecommunication Microcell or Macrocell Stations



The steel telecom tower is generally made from weldable structural carbon steel pipes, the typical shapes of steel monopole towers are tapered conical and polygonal. The steel pipes are bended and welded by flat steel plates because the size is large. The popular steel grade is GB Q235 and Q345, which are respectively equivalent to ASTM A36 and ASTM A572 Grade 50.



35m high 5G Antenna Steel Pole with 3 Platforms

Material Tubular steel pipes, angular steel plates, flat steel plate or solid steel bars, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 3 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting flanges
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations





The rooftop steel tower is a small size tower for communication microcell station for enlarging the telecommunication signal coverage in the communities. It is typically designed as bipod or tripod tower mounted on the roof top, the height of rooftop towers is generally 5m to 15m. The rooftop tower is composed of a main pole which is made from tubular steel pipe and some angle steel or flat steel plates as bracings, connected by flanges, bolts and nuts. A foundation with anchoring bolts is also required for fixing the tower. Sometimes the rooftop tower is designed as wire guyed tower to make it with higher wind load.





35m Tubular Telecom Steel Tower 2 Platforms For Mounting Telecom Antennas 0

Platforms for assembling antenna brackets



35m Tubular Telecom Steel Tower 2 Platforms For Mounting Telecom Antennas 1

Steel tower bottom section with connecting flange plate



35m Tubular Telecom Steel Tower 2 Platforms For Mounting Telecom Antennas 2

Foundation construction



35m Tubular Telecom Steel Tower 2 Platforms For Mounting Telecom Antennas 3
